Referanser
Dormer:EX01M8DIN376
Rubix:6188294
EAN:7320760137031

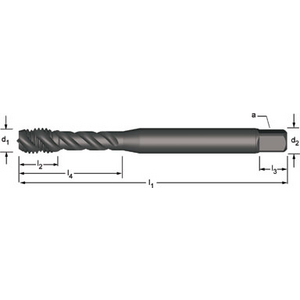

Produktinformasjon : GJENGETAPP M8x1.25mm HSS-E DAMPANLØPT DIN 371 LE 10, DIN 376 GE 12 - EX01M8DIN376 - DORMER
HSS-E Machine tap for metric thread steam-tempered DIN 371 form C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Stainless steel and cast iron.
Bruksområder
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless machining steel (<250 HB <850 N/mm²)
• SS - austenitic (<320 HB <1100 N/mm²)
Teknisk informasjon
Egenskaper
| Gjengediameter | 8 mm |
|---|---|
| Vinkel på helix | 45 ° |
| Total lengde | 90 mm |
| Hus materiale | hss-e |
| Type | metriske blindhull |
| Med kjølespray | nei |
| Borre diameter | 6.8 mm |
| Firkantet adapter | 6 mm |
| Overflatebehandling | steam tempered |
Vis UNSPSC/ECL@SS
360,96 kr Eks. mva
/ stykk
451,20 kr Inkl. mva
- Tilgjengelig
