Referanser
Dormer:S90412.0
Rubix:6189470
EAN:7320760133095
Produktinformasjon : SKAFTFRES FINBEARBEIDING 12.00mm SOLID HM BLANK - S90412.0 - DORMER
Solid carbide short end mill with DIN 6535 HA shank N 30° uncoated 4-flute for steel <850 N/mm². Cast iron. Titanium and nickel. Copper and copper alloys.

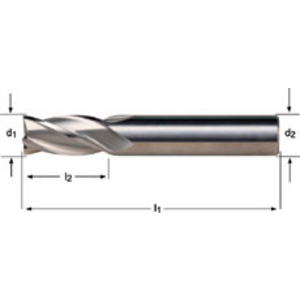

END MILL 12,00 4D NORMAL S904 30DEG CW MICROGAIN
Bruksområder
• Free-cutting steel, mild steel (<120 HB <400 N/mm²)
• Structural steel, case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Lamellar cast iron (<150 HB >500 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Unalloyed titanium (<200 HB <700 N/mm²)
• Unalloyed nickel (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Beta brass, bronze (<200 HB <700 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)
• Structural steel, case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Lamellar cast iron (<150 HB >500 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Unalloyed titanium (<200 HB <700 N/mm²)
• Unalloyed nickel (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Beta brass, bronze (<200 HB <700 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)
Teknisk informasjon
Egenskaper
| Diameter | 12 mm |
|---|---|
| Type hale | ha |
| hale diameter | 12 mm |
| Antall tenner | 4 |
| Lengde på kutt | 25 mm |
| Total lengde | 73 mm |
| Skjæremateriale | karbid |
| Overflatebehandling | uncoated |
| Vinkel på helix | 30 ° |
| Maskinerings materiale | steel, cast iron, titanium, nickel, copper and copper alloys |
| Kapasitet lengde | 25 mm |
| Kutte vinkel | 12 ° |
Vis UNSPSC/ECL@SS
1 043,28 kr Eks. mva
/ stykk
1 304,10 kr Inkl. mva
- Tilgjengelig – Leveringsdato på forespørsel
