Referanser
Dormer:C50510.0
Rubix:6199995
EAN:7320760073520

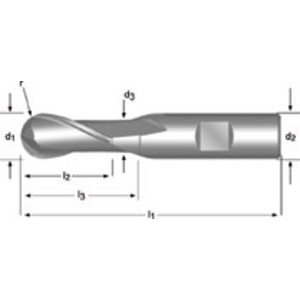

Produktinformasjon : SKAFTFRES RADIEPINNEFRES 10.00mm HSS-E BLANK DIN 844 K - C50510.0 - DORMER
HSS-E medium-length radius end mill with Weldon shank DIN 844K N 30° uncoated 2-flute for unalloyed steel <700 N/mm². Titanium. Nickel and copper alloys.
MILL 10,00 2D SHORT QC C505 HSCO
Bruksområder
• Free-cutting steel / mild steel (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Cast iron lamellar (<150 HB >500 N/mm²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Nodular cast iron / malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Unalloyed titanium (<200 HB <700 N/mm²)
• Alloyed titanium (<270 HB <900 N/mm²)
• Unalloyed nickel (<200 HB <700 N/mm²)
• Alloyed nickel (<270 HB >900 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Beta brass, bronze (<200 HB <700 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloy steel (<250 HB <850 N/mm²)
• Cast iron lamellar (<150 HB >500 N/mm²)
• Cast iron lamellar (>150<300 HB >500<1000 N/mm²)
• Nodular cast iron / malleable cast iron (<200 HB <700 N/mm²)
• Nodular cast iron / malleable cast iron (>200<300 HB >700<1000 N/mm²)
• Unalloyed titanium (<200 HB <700 N/mm²)
• Alloyed titanium (<270 HB <900 N/mm²)
• Unalloyed nickel (<200 HB <700 N/mm²)
• Alloyed nickel (<270 HB >900 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Beta brass, bronze (<200 HB <700 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)
Teknisk informasjon
Egenskaper
| Diameter | 10 mm |
|---|---|
| Type hale | weldon |
| hale diameter | 10 mm |
| Antall tenner | 2 |
| Lengde på kutt | 22 mm |
| Total lengde | 72 mm |
| Senter kutt | without |
| Skjæremateriale | hss |
| Overflatebehandling | uncoated |
| Type | radius end mill |
| Maskinerings materiale | unalloyed steel, titanium, nickel and copper alloys |
| Kutte vinkel | 30 ° |
Vis UNSPSC/ECL@SS
807,99 kr Eks. mva
/ stykk
1 009,99 kr Inkl. mva
- Tilgjengelig – Leveringsdato på forespørsel
