Referanser
Dormer:S6374.0
Rubix:6451695
EAN:7320760684238
Produktinformasjon : Milling tool with cutting edges of cermets, S6374.0 - 6706874 - DORMER

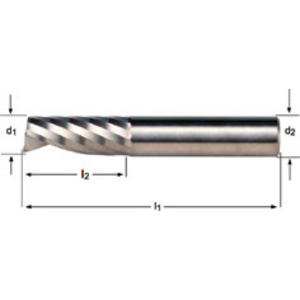

Solid carbide 1-flute template cutter with medium cutting edge and projection length. DIN 6335 HA cylindrical shank. 25° helix and 20° rake angle. Polished surface for copper. Copper and brass alloys. Aluminium and aluminium-magnesium alloys. Thermoplastics and duroplastics.
Bruksområder
• Copper (<100 HB <350 N/mm²)
• Beta-brass Bronze (<200 HB <700 N/mm²)
• Alpha-brass (<200 HB <700 N/mm²)
• Extra-strong bronze (<470 HB <1500 N/mm²)
• Aluminium magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium alloyed with silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed with silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed with silicon >10% whisker reinforced aluminium alloys magnesium alloys (<120 HB <400 N/mm²)
• Thermoplastics
• Duroplastics
• Beta-brass Bronze (<200 HB <700 N/mm²)
• Alpha-brass (<200 HB <700 N/mm²)
• Extra-strong bronze (<470 HB <1500 N/mm²)
• Aluminium magnesium unalloyed (<100 HB <350 N/mm²)
• Aluminium alloyed with silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed with silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed with silicon >10% whisker reinforced aluminium alloys magnesium alloys (<120 HB <400 N/mm²)
• Thermoplastics
• Duroplastics
Teknisk informasjon
Egenskaper
| Diameter | 4 mm |
|---|---|
| Type hale | ha |
| hale diameter | 4 mm |
| Antall tenner | 1 |
| Lengde på kutt | 15 mm |
| Total lengde | 40 mm |
| Skjæremateriale | karbid |
| Overflatebehandling | polished |
| Maskinerings materiale | copper, copper- and brass alloys, aluminium and aluminium-magnesium alloys, thermoplastics and duroplastics |
Vis UNSPSC/ECL@SS
638,16 kr Eks. mva
/ stykk
797,70 kr Inkl. mva
- Tilgjengelig – Leveringsdato på forespørsel
