Referanser
Dormer:C5004.0
Rubix:6200015
EAN:7320760073230
Produktinformasjon : SKAFTFRES RADIEPINNEFRES 4.00mm HSS-E BLANK DIN 327 D - C5004.0 - DORMER
HSS-E extra short radius cutter with Weldon shank DIN 327D N 30° uncoated 2-flute for unalloyed steel <700 N/mm². Titanium. Nickel and copper alloys.
C500 4.0 Hsse Flt Shnk 2Fl Bl Nsd Sht Ser S/Drl Din327 D
Bruksområder
• Free-cutting steel / mild steel (<120 HB <400 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Unalloyed titanium (<200 HB <700 N/mm²)
• Unalloyed nickel (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Beta brass, bronze (<200 HB <700 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)
• Structural steel / case-hardening steel (<200 HB <700 N/mm²)
• Unalloyed titanium (<200 HB <700 N/mm²)
• Unalloyed nickel (<200 HB <700 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Beta brass, bronze (<200 HB <700 N/mm²)
• Alpha brass (<200 HB <700 N/mm²)

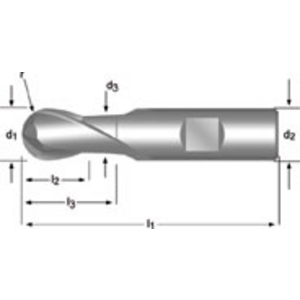

Teknisk informasjon
Egenskaper
| Diameter | 4 mm |
|---|---|
| Type hale | weldon |
| hale diameter | 6 mm |
| Antall tenner | 2 |
| Lengde på kutt | 7 mm |
| Total lengde | 51 mm |
| Senter kutt | without |
| Skjæremateriale | hss |
| Overflatebehandling | blank |
| Type | radius cutter |
| Maskinerings materiale | unalloyed steel, titanium, nickel, and copper alloys |
| Kutte vinkel | 30 ° |
Vis UNSPSC/ECL@SS
559,07 kr Eks. mva
/ stykk
698,84 kr Inkl. mva
- Tilgjengelig – Leveringsdato på forespørsel
